ATV Electric Winch

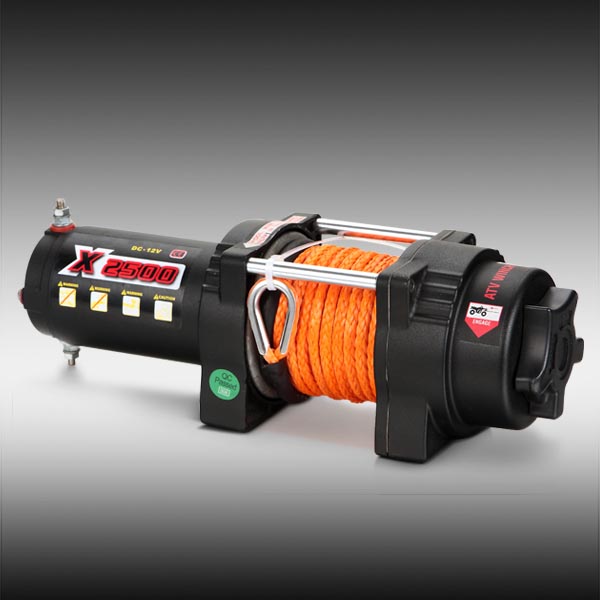

  • X2500S

If you are riding on the edge and pushing the limits on a ATV or Side x Side,you need a winch that’ll keep up.


  • Low current and high efficiency minimize battery drain.

  • Water resistance o ring seal keeps the winch working well through water.

  • Patented matching drum and gear assembly ensures quiet operation.

  • Stainless steel for strengthening threaded holes.

  • 3 stage all metal gears for maximum strength.

  • Large and easy operation clutch lever.

  • Independent Mechanical brake system .

ATV X 透视图.jpg

Rated line pull: 2500lbs (1134kgs)single line
Motor: Permanent magnetic motor 1.5hp/1.0kw,12V DC
Gear train: 3stage planetary
Gear ratio: 138.:1
Braking action: Automatic in the durm
Fairlead: Aluminum hawse fairlead
Synthetic rope: 5mmx10m
Durm size: 50mm×76.5mm
Dimensions: 351mm×114mm×116mm
Mounting bolt pattern: 124mm×76mm
N.W: 20lbs(9kgs)
Packing: 420mm×250mm×220mm(1000pcs 20'container)

Line speed and motor current (first layer)
Line pull Lbs 0 1000 2000 2500
Kgs 0 454 907 1134
Line speed FPM  24.5 14.7 10.5 6.9
MPM  7.5 4.5 3.2 2.1
Motor current Amps  15 75 120 175
Line pull and cable capacity
Layer of cable   1 2 3 4
Rated line pull per layer Lbs 2500 2000 1870 1680
Kgs 1134 907 849 760
Cable capacity per layer Ft. 7.2 15.7 25.9 39
M 2.2 4.8 7.9 12
