Best Rated UTV Winch

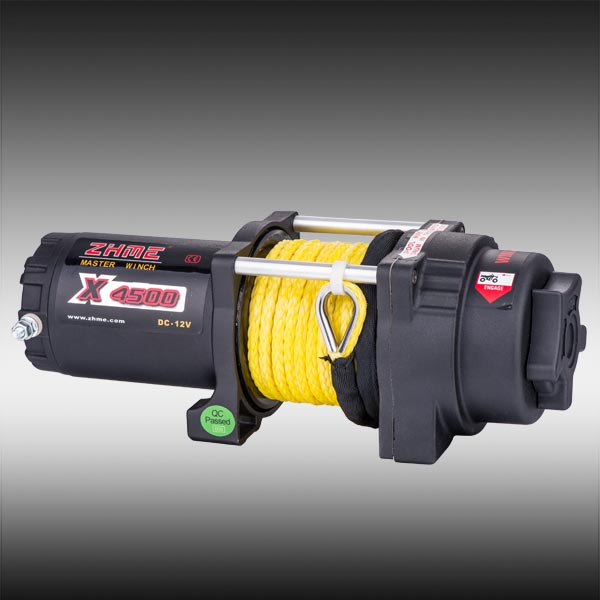

  • X4500S

DESCRIPTION

If you are riding on the edge and pushing the limits on a ATV or Side x Side,you need a winch that’ll keep up.


  • Low current and high efficiency minimize battery drain.

  • Water resistance o ring seal keeps the winch working well through water.

  • Patented matching drum and gear assembly ensures quiet operation.

  • Stainless steel for strengthening threaded holes.

  • 3 stage all metal gears for maximum strength.

  • Large and easy operation clutch lever.

  • Independent Mechanical brake system .



ATV X 透视图.jpg

    SPECIFICATION

    Rated line pull: 4500lbs (2041kgs)single line
    Motor: Permanent magnetic motor 1.8hp/1.3kw 12V DC
    Gear train: 3stage planetary
    Gear ratio: 198.:1
    Braking action: Automatic in the durm
    Fairlead: Aluminum hawse fairlead
    Synthetic rope: 6.3mm×12m
    Durm size: 51mm×79mm
    Dimensions: 338mm×125mm×115.5mm
    Mounting bolt pattern: 124mm×76mm
    N.W: 24lbs(11kgs)
    Packing: 420mm×250mm×220mm(800pcs 20'container)

    Line speed and motor current (first layer)
    Line pull Lbs 0 1000 2000 3000 4500
    Kgs 0 454 907 1360 2041
    Line speed FPM  16 10.5 9.2 7.2 3.9
    MPM  4.9 3.2 2.8 2.2 1.2
    Motor current Amps  17 70 10.5 135 165

    Line pull and cable capacity
    Layer of cable   1 2 3 4
    Rated line pull per layer Lbs 4500 3225 2700 2325
    Kgs 2041 1460 1225 1055
    Cable capacity per layer Ft. 6.6 14.1 23.6 39
    M 2.0 4.3 7.2 12

    DIMENSIONS

    F6000 F4500 F4000
